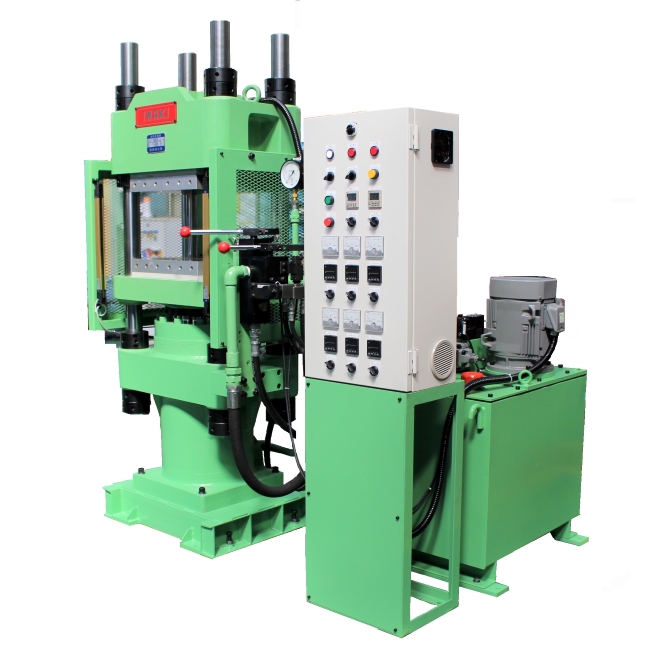

70ton Manual Press Molding Machine
Hot press molding machines

This single-action molding press machine can be operated manually.
【Features】
1.By controlling the hot platen with three temperature controllers, it is possible to keep the temperature accuracy within ± 5 ° C.
2.Compact size and simple operation for prototype research

| Products(applications) | Rubber |
| Output | 70ton |
| Stroke | 300㎜ |
| Open height | 250-400㎜ |
| Platen size | 410㎜x410㎜ |
| Mold size | 400㎜x400㎜ |
| Cylinder | φ250㎜ |
| Maximum pressure | 15MPa |
| Operation speed | ~22㎜/s |
| Hot platen temperature | 200℃ |
| Hydraulic motor power | 3.7KW |
| Heater capacity | 8KW |
| Operation | Manual |
| Machine size(widthxheightxdepth) | Approximately 1700㎜x2000㎜x1200㎜ |
