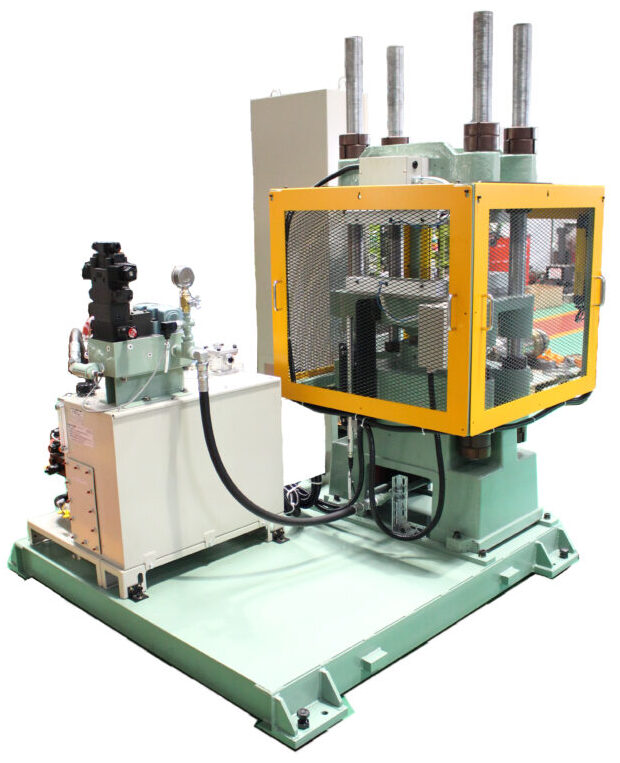

Used 50ton Hydraulic Molding Press Machine
Hot press molding machinesPowder press molding machinesResin press molding machinesUsed press molding machines
This is a hydraulic molding machine for FRP (Fiber Reinforced Plastic).
【Features】
1.An inverter-driven hydraulic unit is used. The inverter hydraulic unit controls the flow rate and pressure of a fixed-displacement pump by regulating motor speed, enabling energy savings and reducing heat generation.
2.Heating up to 250°C is possible.
3.Pressure and machine speed can be adjusted via the touch panel.
For information on available refurbished machines, please refer to the used machine inventory list below.
| Product (application) | Composite molding (FRP) |
| Output (ton) | 50ton |
| Stroke | 280㎜ |
| Open height | 200㎜ |
| Platen size | □400㎜ |
| Cylinder | φ180㎜ |
| Maximum pressure | 20.6MPa |
| Operation speed | 3.3～40㎜/s |
| Heater temperature | 250℃ |
| Hydraulic motor capacity | 5KW |
| Heater capacity | 8.4KW（4.2KWｘ2） |
| Operation | Manual/Automatic |
| Machine size(widthxheightxdepth) | Approximately 1600㎜ｘ2000㎜ｘ1700㎜ |
| Management number | 089 |
