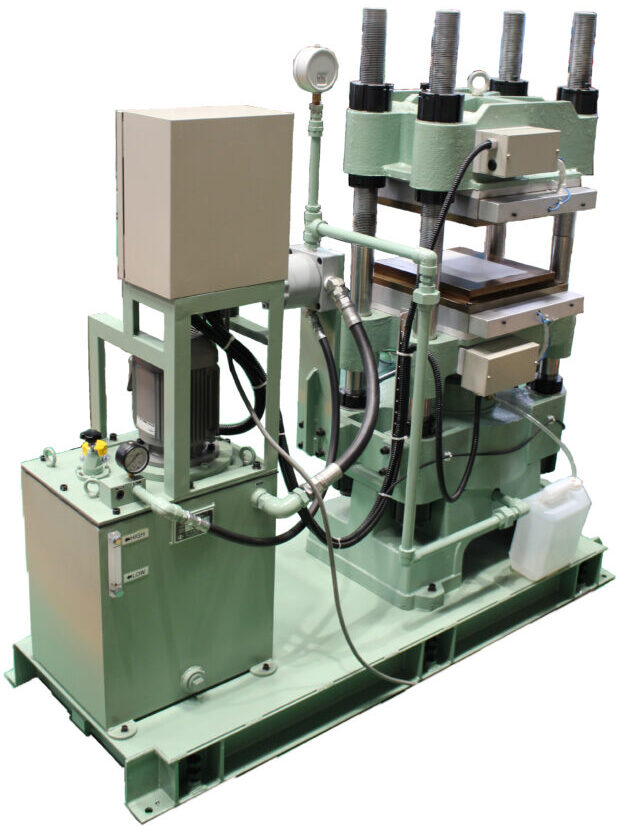

Used 50-Ton Hydraulic Molding Press (Manual Operation)

Custom press molding machinesHot press molding machinesResin press molding machines

This is a hot press machine overhauled from a used press machine manufactured by another company. All components except the press body are new.

【Features】

1.The machine allows both low and high pressure operation via a manual lever.

2.The use of non-leak valves enables long-term and stable pressure retention.

3.The system is controlled by selecting suitable equipment, such as a proportional valve, servo system, or inverter, in accordance with customer requirements.



For information on available refurbished machines, please refer to the used machine inventory list below.

https://www.iwa-ki.com/used/

Product (application)Thermosetting resin molding
Output (ton)50ton
Stroke200㎜
Open height100~350㎜
Platen size□410㎜
Cylinderφ180㎜
Maximum pressure20.6MPa
Operation speed21㎜/s
Heater temperature200℃
Hydraulic motor capacity1.5KW
Heater capacity7KW(3.5KWx2)
OperationManual
Machine size(widthxheightxdepth) Approximately 1700㎜x1677㎜x660㎜
Management number088
