20ton Double-Clamping Hydraulic Molding Machine
Custom press molding machinesHot press molding machinesPowder press molding machines

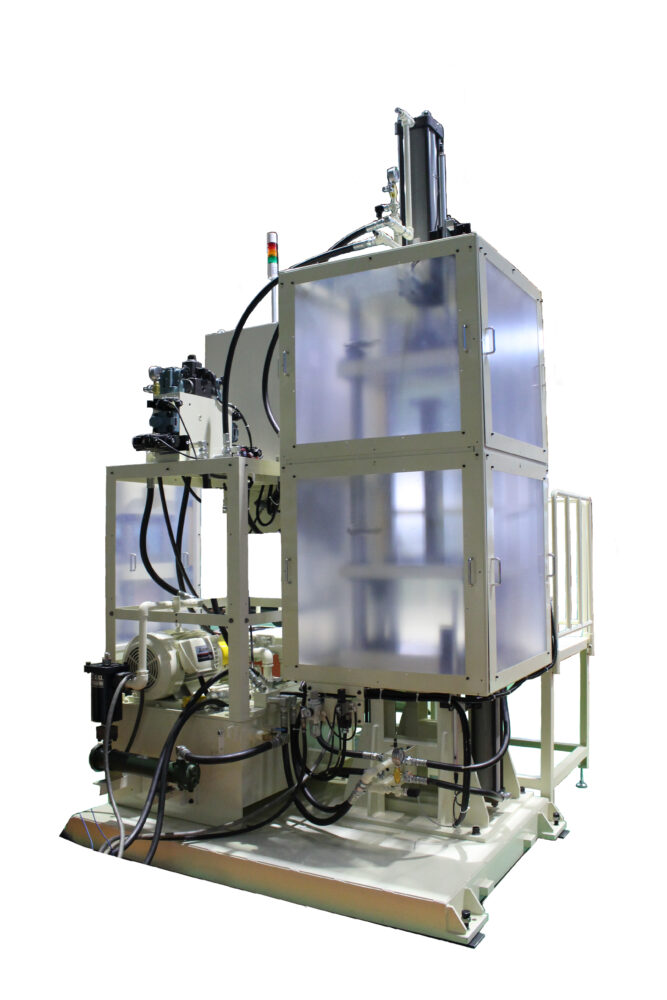

This is a dual-clamping hydraulic powder molding machine.
【Features】
1.The machine is equipped with upper and lower cylinders, enabling pressure to be applied to the mold from both directions.
2.The machine is capable of controlling both pressure and speed required for powder molding.
3.Custom-built stages are also available to suit the machine requirements.
| Product (application) | Powder Molding |
| Output (ton) | 20ton |
| Stroke | Upper: 550 ㎜ Lower: 500㎜ |
| Open height | Upper: 570 ㎜ Lower: 590㎜ |
| Platen size | □440㎜ |
| Cylinder | Upper：φ140㎜ Lower：φ100㎜ｘ2 |
| Maximum pressure | 14MPa |
| Operation speed | 0.2～50㎜/s |
| Hydraulic motor capacity | 7.5KW |
| Operation | Manual/Automatic |
| Machine size(widthxheightxdepth) | Approximately 2000㎜ｘ3600㎜ｘ1500㎜ |
| Management number | 086 |
