100ton Hydraulic Transfer Molding Machine
Custom press molding machinesHot press molding machinesProduction process labor saving device

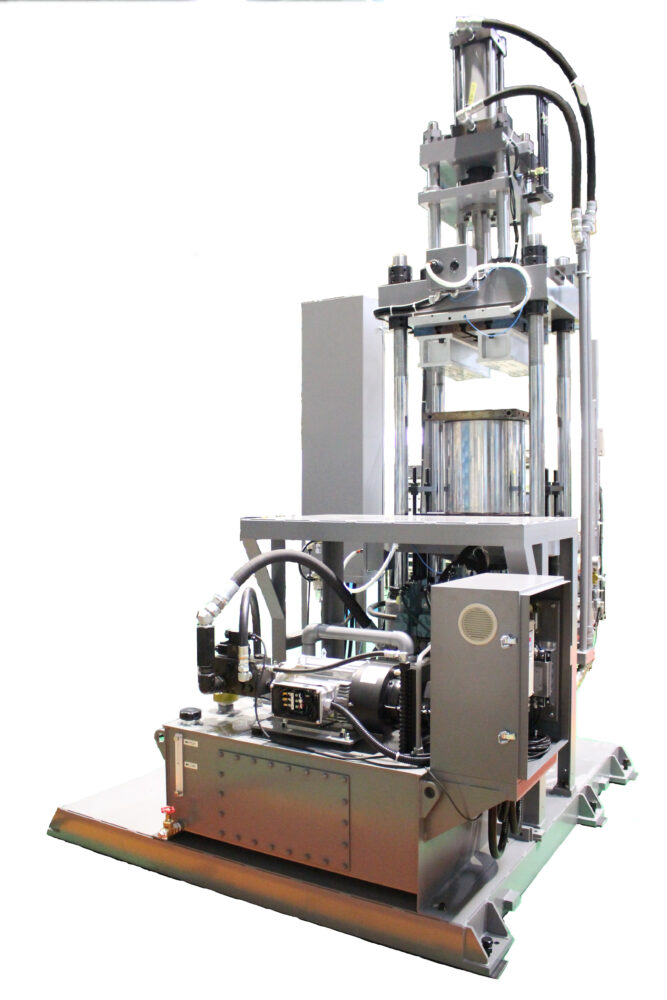

This is a 100-ton hydraulic molding machine equipped with a transfer mechanism.
【Features】
1.The machine is designed to match your existing plungers and molds, eliminating the need for mold redesign. We also provide consultation on mold mounting methods.
2.The operating program is developed in-house, enabling optimal machine operation tailored to molding conditions and processes.
| Product (application) | Rubber molding |
| Output (ton) | 100ton Transfer unit: 26 tons |
| Stroke | 400㎜ Transfer unit: 300㎜ |
| Open height | 650~850㎜ |
| Platen size | □510㎜ |
| Cylinder | φ250㎜ |
| Maximum pressure | 20.6MPa |
| Operation speed | 2~170㎜/s |
| Heater temperature | 250℃ |
| Hydraulic motor capacity | 11KW |
| Heater capacity | 9KW |
| Operation | Manual/Automatic |
| Machine size(widthxheightxdepth) | Approximately 1890㎜x3720㎜x2000㎜ |
| Management number | 084 |
