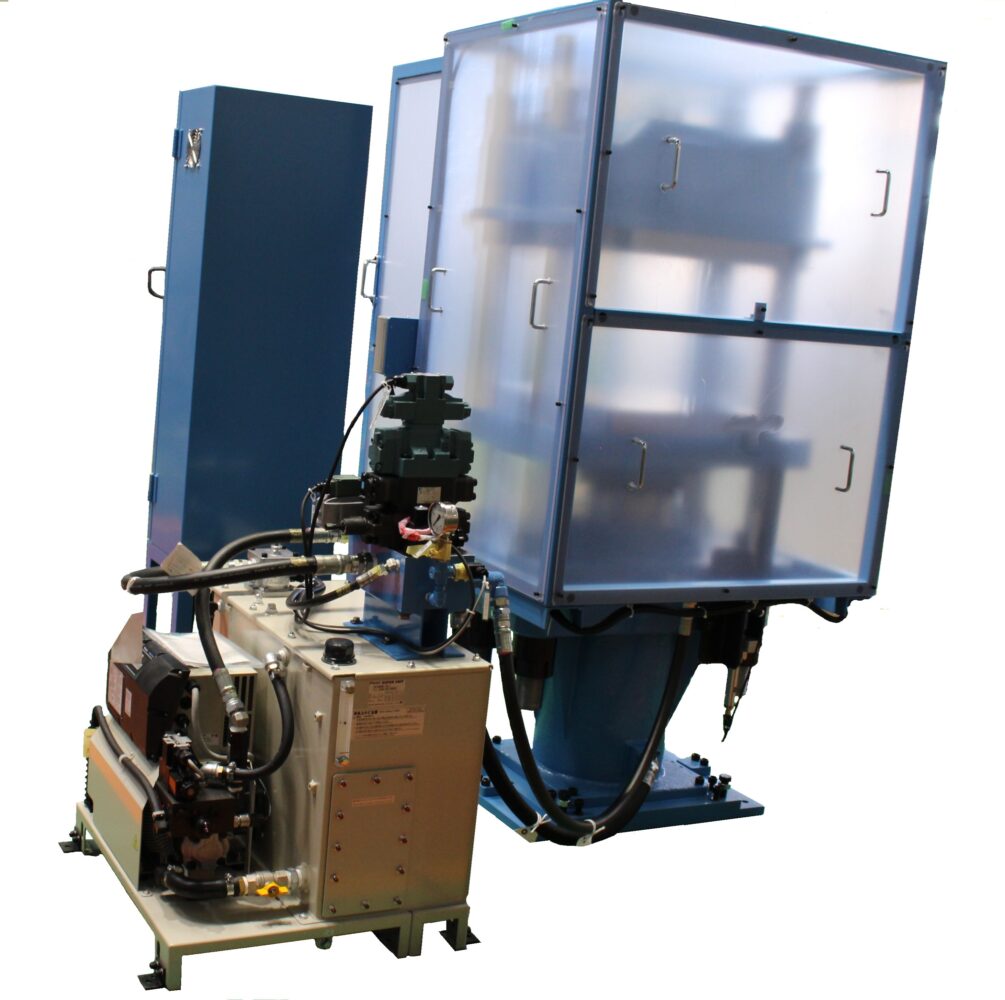

100ton Hydraulic molding press machine OH
Used press molding machines

This is a refurbished hydraulic molding press that has been overhauled from a used machine.
Only the machine body has been overhauled, and newly manufactured control panels and hydraulic units have been installed.
【Features】
1.An inverter-controlled hydraulic power unit is used.
By controlling the motor speed, the inverter hydraulic unit regulates the flow rate and pressure of a fixed-displacement pump, enabling energy savings and reduced heat generation.
2.For safety, four-sided safety covers are installed.
The front door is equipped with a safety door switch interlock, ensuring that the machine cannot operate unless the door is fully closed.
For information on available refurbished machines, please refer to the used machine inventory list below.
| Product (application) | Resin Molding |
| Output (ton) | 100ton |
| Stroke | 300㎜ |
| Open height | 400㎜ |
| Platen size | 460×460㎜ |
| Cylinder | φ250㎜ |
| Maximum pressure | 20.6MPa |
| Operation speed | 3-20㎜/s |
| Hydraulic motor capacity | 5KW |
| Operation | Manual/Automatic |
| Machine size(widthxheightxdepth) | Approximately 2200㎜ x2100㎜ x1200㎜ |
| Management number | 073 |
