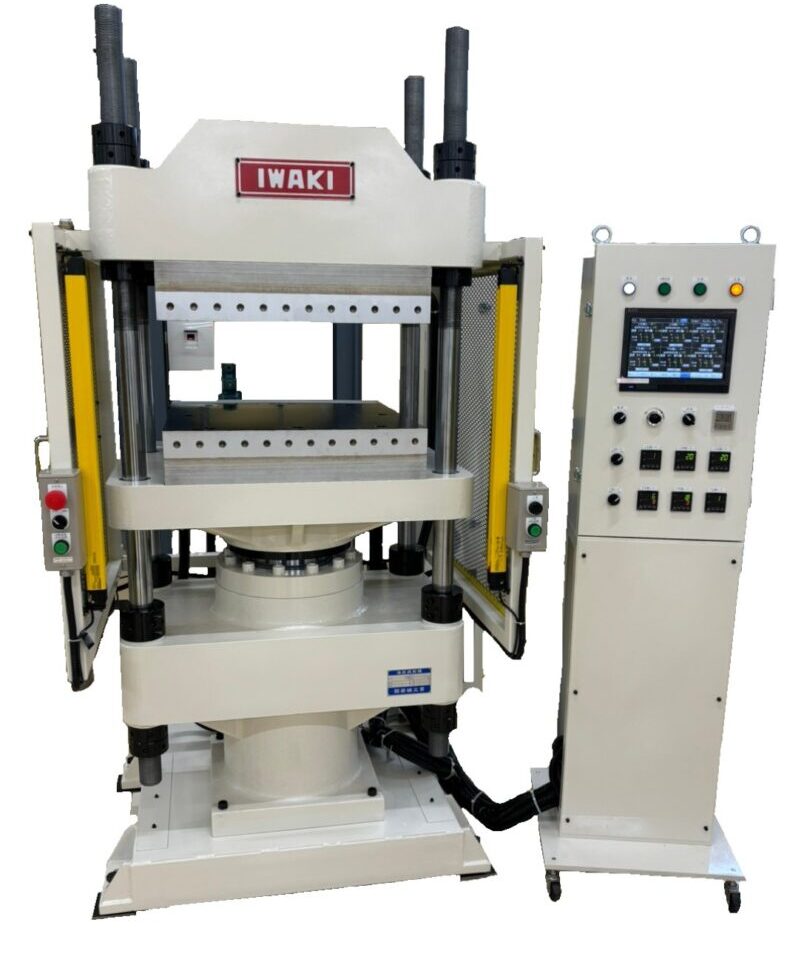

50ton Hydraulic molding press machine
Hot press molding machinesResin press molding machines
This is a hydraulic molding press designed for test and evaluation purposes.
【Features】
1.The machine can be heated up to 350°C within 100 minutes.
2.Automatic operation can be finely and freely configured via the touch panel.
3.Machine operation and temperature ramp-up control are designed to be independently controlled.
| Product (application) | Resin Molding |
| Output (ton) | 50ton |
| Stroke | 250㎜ |
| Open height | 250～500㎜ |
| Platen size | 600×600㎜ |
| Cylinder | φ250㎜ |
| Maximum pressure | 10MPa |
| Operation speed | 3-20㎜/s |
| Heater temperature | MAX350℃ |
| Hydraulic motor capacity | 5.5KW |
| Heater capacity | 24KW(12KW×side 2) |
| Operation | Manual/Automatic |
| Machine size(widthxheightxdepth) | Approximately 1600㎜ x2120㎜ x1800㎜ |
| Management number | 075 |
